Product Category: Operational Amplifiers - Op Amps
Mounting Style: SMD/SMT

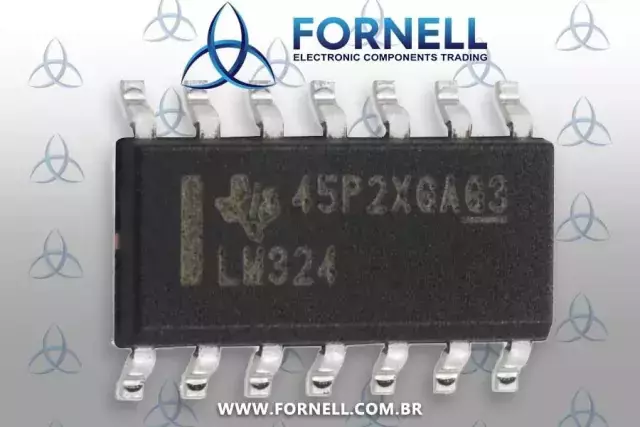

Package / Case: SOIC-14
Number of Channels: 4 Channel
Supply Voltage - Max: 32 V
GBP - Gain Bandwidth Product: 1.2 MHz
Output Current per Channel: 20 mA
SR - Slew Rate: 500 mV/us
Vos - Input Offset Voltage: 7 mV
Supply Voltage - Min: 3 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Ib - Input Bias Current: 250 nA
Operating Supply Current: 1.4 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 80 dB
en - Input Voltage Noise Density: 35 nV/sqrt Hz
Series: LM324

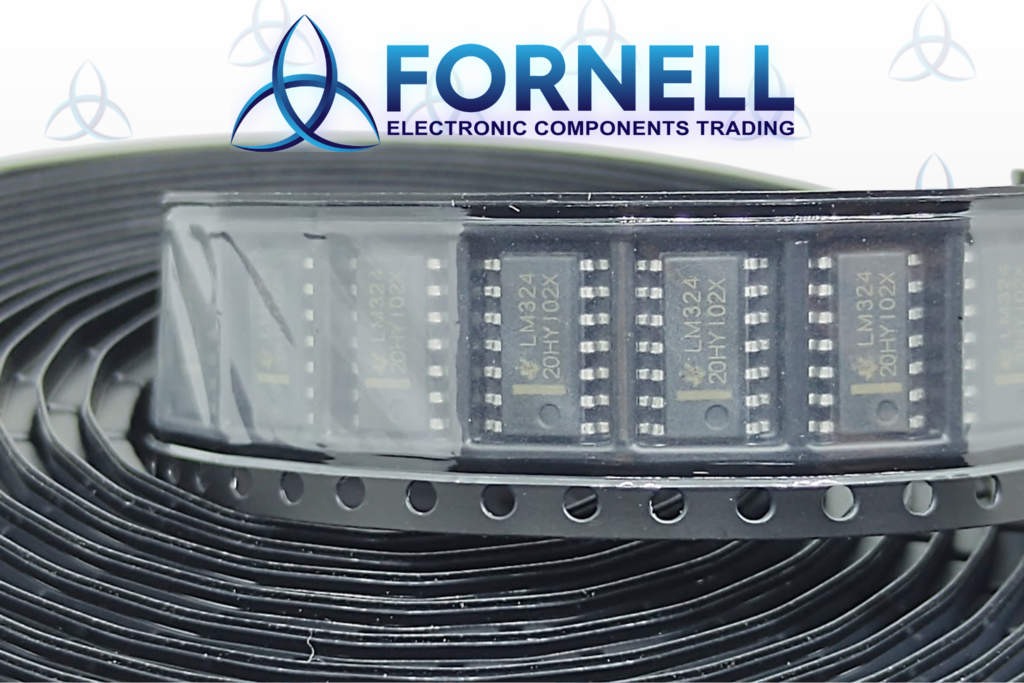

Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Amplifier Type: High Gain Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Features: Standard Amps
Height: 1.58 mm
Input Type: Rail-to-Rail
Length: 8.65 mm
Maximum Dual Supply Voltage: +/- 16 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
Subcategory: Amplifier ICs
Supply Type: Single, Dual
Technology: Bipolar
Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
Voltage Gain dB: 100 dB
Width: 3.91 mm
Unit Weight: 260 mg
